Blum Inserta Cliptop Nil Protrusion 155° Door Hinge
Code: CFE447I
Description
Delivery & Returns

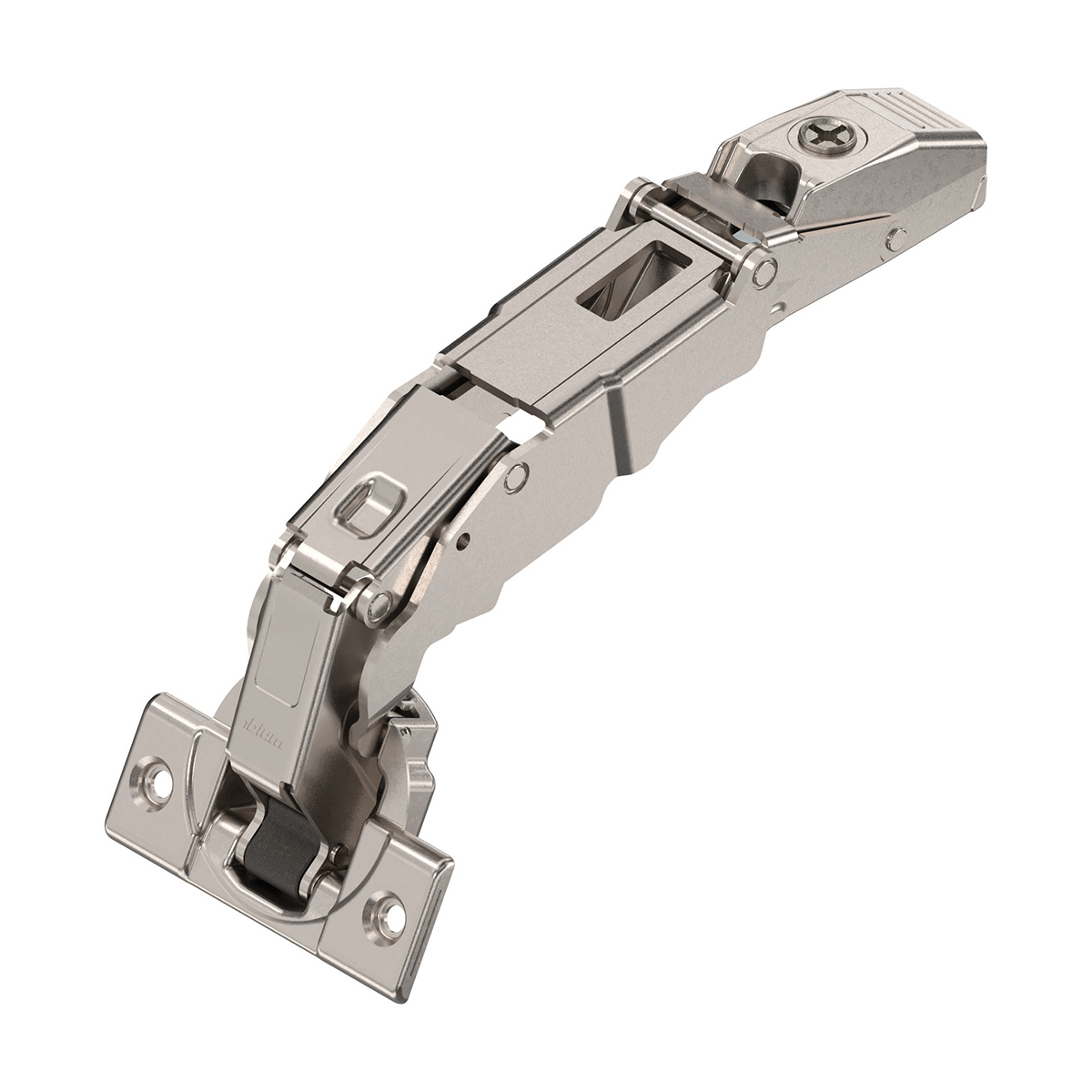

Blum Inserta Hinge Cliptop Nil Protrusion 155°
The Blum 71T7590 Cliptop 155° Zero Protrusion Hinge is engineered for cabinets requiring wide door openings and internal pull-outs. Its design ensures doors open to a full 155° without intruding into the cabinet interior, making it ideal for applications with internal drawers or roll-outs.
Key Features
- Opening angle: 155°
- Overlay application: Full overlay
- Zero protrusion: Allows internal drawers to extend without obstruction
- Boss assembly: INSERTA (tool-free, press-fit)
- Closing mechanism: With spring (self-closing)
- Side adjustment: ±2 mm
- Depth adjustment: +3 / –2 mm
- Cup diameter: 35 mm
- Cup depth: 11.7 mm
- Maximum door thickness: Up to 24 mm
- Material: Steel, nickel-plated
Mounting plate NOT included
