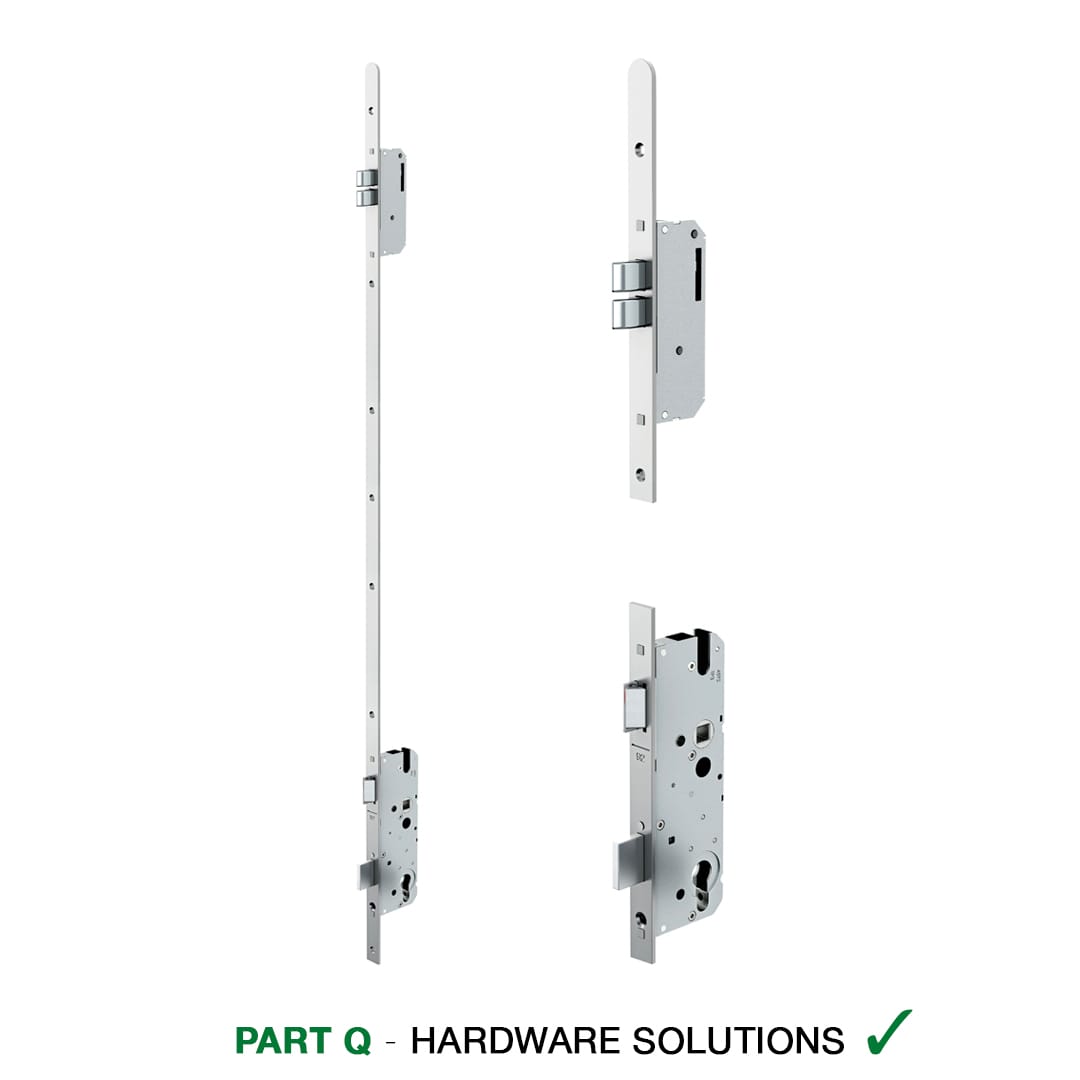

The easy-to-fit twin deadbolt Reliance D10 Multipoint locking systems have been especially designed to give increased tolerances for door installers, allowing for up to 50% greater fitting tolerances and also for greater material movement associated with certain hardwoods.
Centre gearbox strength increased by 30% to further reduce the risk of malicious abusive loads.
This impressive locking system has 5 deadbolts incorporating twin deadbolts in the upper and lower positions, providing high security levels and peace of mind.
The solid twin deadbolts in the upper and lower positions are bevelled on both sides giving the ability to draw the door up giving perfect compression to the joinery seal when the deadbolts are inserted into the keeps.
Kit Includes:
- Twin Deadbolt Multipoint Lock with 55mm Backset and 20mm Radius End Faceplate
- Adjustable Deadbolt Keep with Under Adjustment
- Premium Adjustable Non-Handed Centre Keep for up to 44mm doors
Specifications:

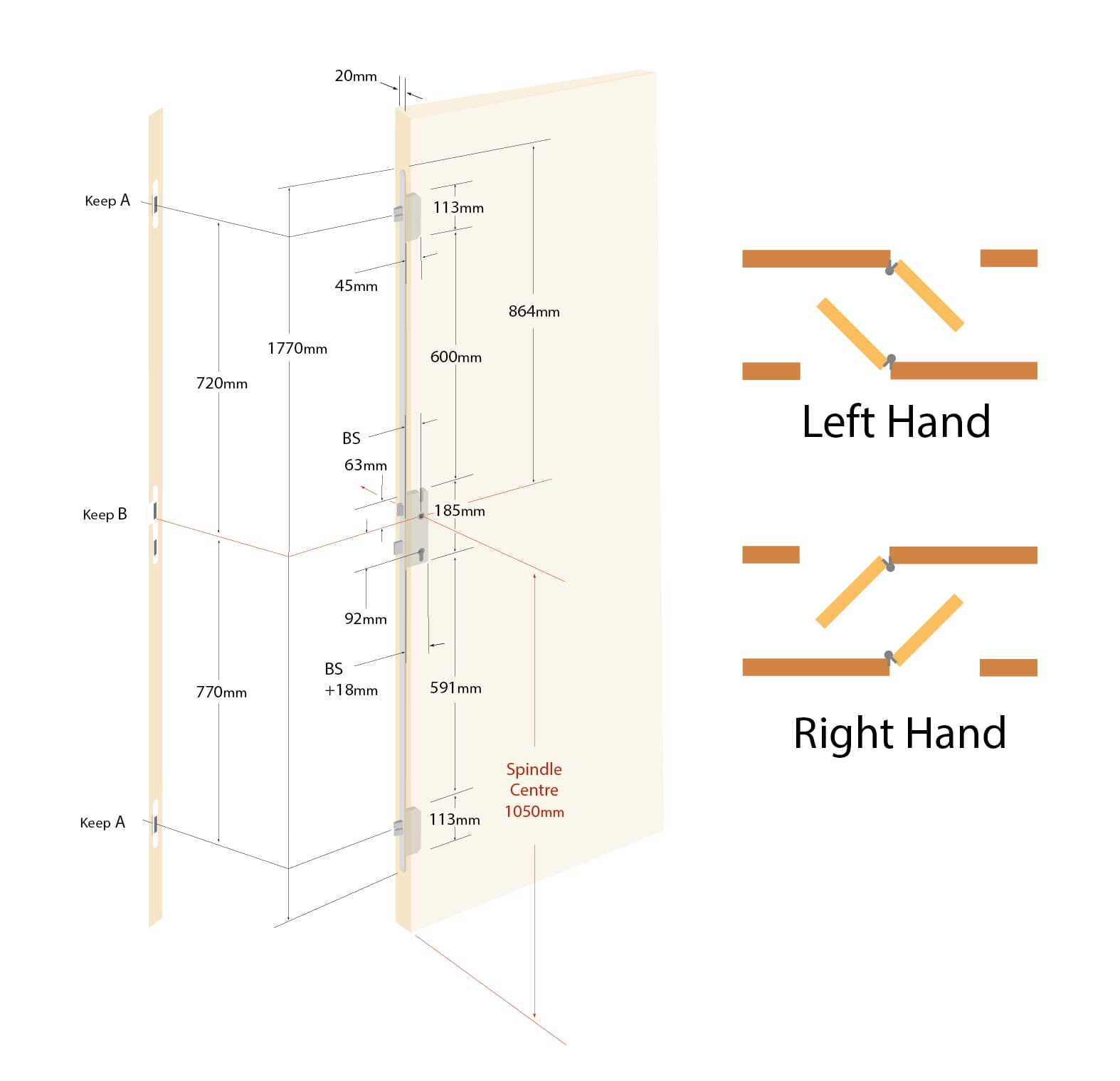

- Minimum door height 1934mm with spindle height of 1050mm (a lower minimum door height of 1810mm can be achieved by reducing the spindle height).
- Twin Tapered Deadbolt
- 55mm backset
- 20mm radius end faceplate
- ‘Secured by Design’ approved.
- Tested to PAS24 and EN14351-1:2006 standard.
- The twin deadbolts have a 20mm throw that fully penetrate the keep rail helping to prevent the frame and sash being forced apart.
- Manufactured by Winkhaus
