The Reliance D51 multipoint locking system has been designed to complement and enhances the visual value of contemporary and traditional doors. The euro profile locking cylinder of the lock is located at a similar height to a traditional round cylinder pull.
External lever handles are not required to operate the locking points and the lock can be deadlocked or opened externally by turning the key. From the inside the door can be opened by an internal thumbturn. A key is required to gain entry from the outside of the property.
This multipoint lock features the twin tapered deadbolts in the upper and lower positions giving a high level of security and ensuring the frame and door are not forced apart in the event of a manual attack.
Kit Includes:
- Twin Deadbolt Multipoint Lock with 45mm Backset and 20mm Radius End Faceplate
- Adjustable Deadbolt Keep with Under Adjustment
- AV3 Adjustable Left Hand Centre Keep for up to 56mm Doors
Specifications:

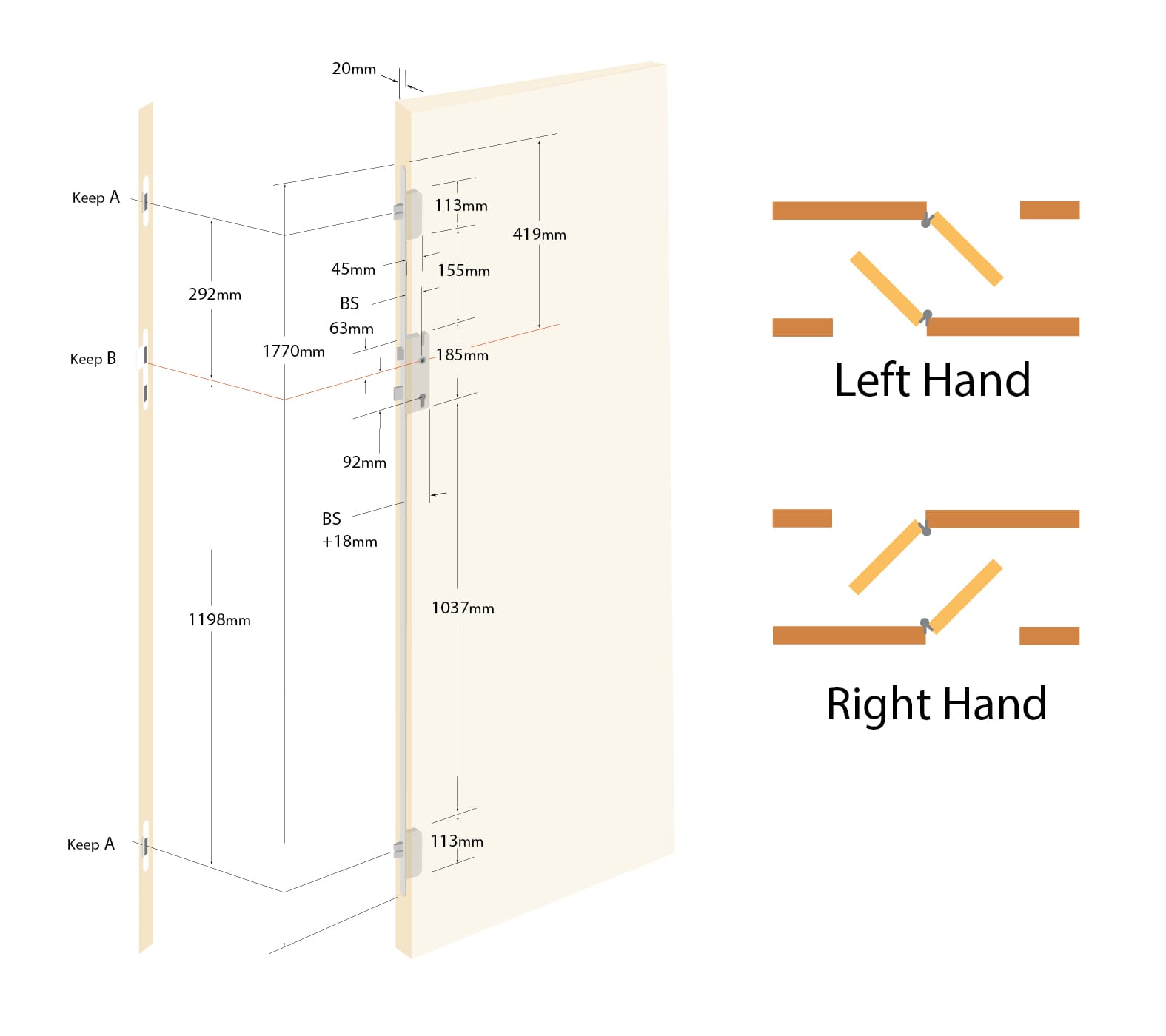

- Minimum door height 1180mm with spindle height of 1050mm (a lower minimum door height of can be achieved by reducing the spindle height).
- Twin deadbolt
- 45mm backset
- 20mm radius end faceplate
- ‘Secured by Design’ approved.
- Tested to PAS24 and EN14351-1:2006 standard.
- Manufactured by Winkhaus
