Tommafold Interior Bifolding Door Track Kit For Max Weight Of 60kg

With smooth-rolling polymer tyres tested to 100,000 cycles, and hinges tested to 200,000 cycles, you can rest easy knowing you’ll be working with a rugged and reliable bi-folding door track kit that’s built to last and has already been put through its paces to guarantee quality. Made from durable and rugged aluminium, these interior-suited tracks will help bi-folding doors maintain their stability without warping, bending or rusting, for smooth operation and reliable service every time.

Suitable for both timber and metal doors below 60kg in weight, this interior bi-folding door track kit is ideal for a wide array of bi-folding doors and projects, ideal if you’re planning on working on multiple projects using any number of bi-folding doors.

Plus, with an impressive 10-year warranty, you can be sure your Tommafold bi-folding door kit will offer fantastic results for years to come.

Features:

• Top hung bifolding door system
• Suited to interior applications
• 10 year warranty
• Smooth rolling polymer tyres tested to 100,000 cycles
• Hinges tested to 200,000 cycles
• Track is soffit fixed to underside of jamb
• Roller connected to door via heavy duty recessed L-bracket
• Suitable for timber or metal doors
• Track can be joined by butting track together

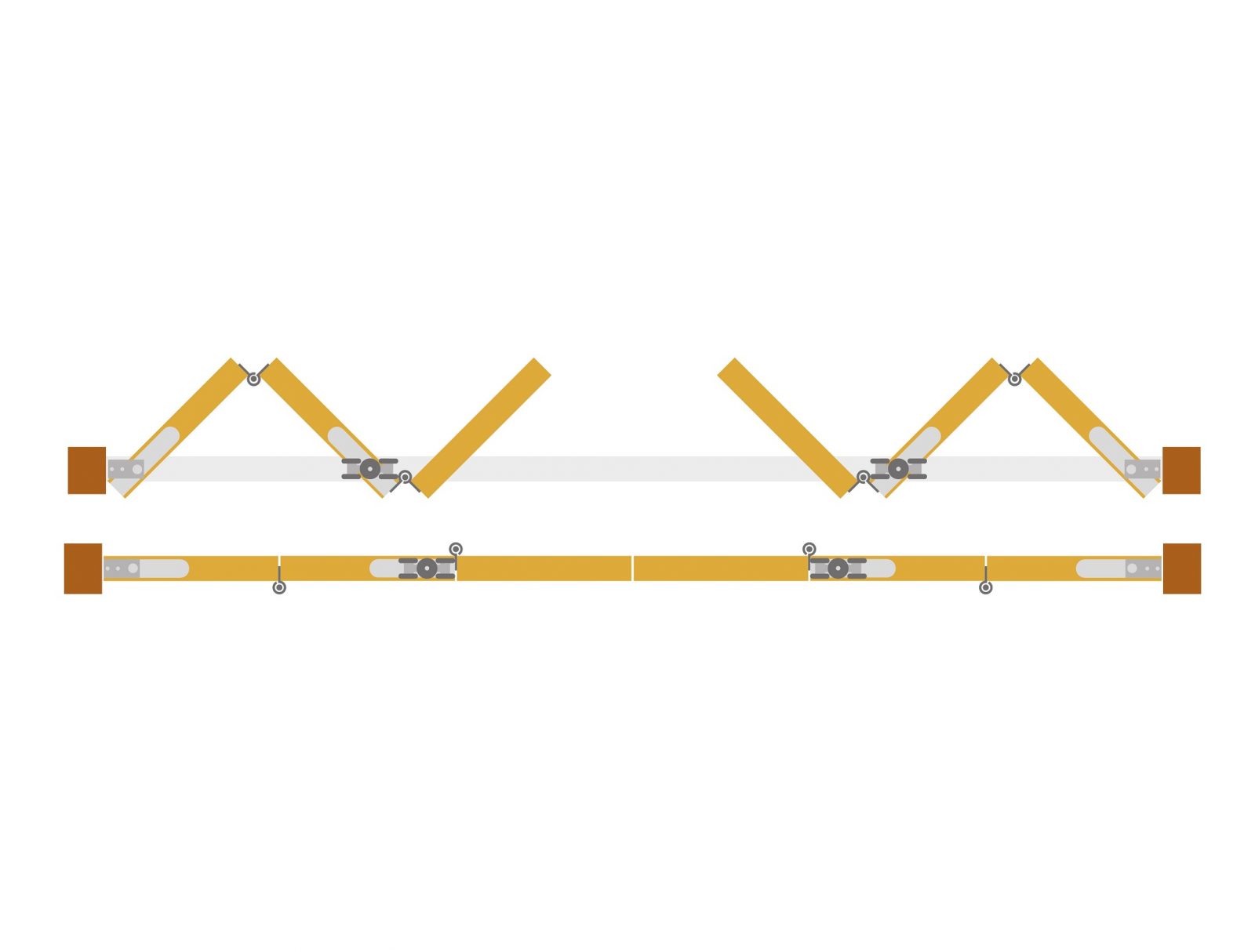

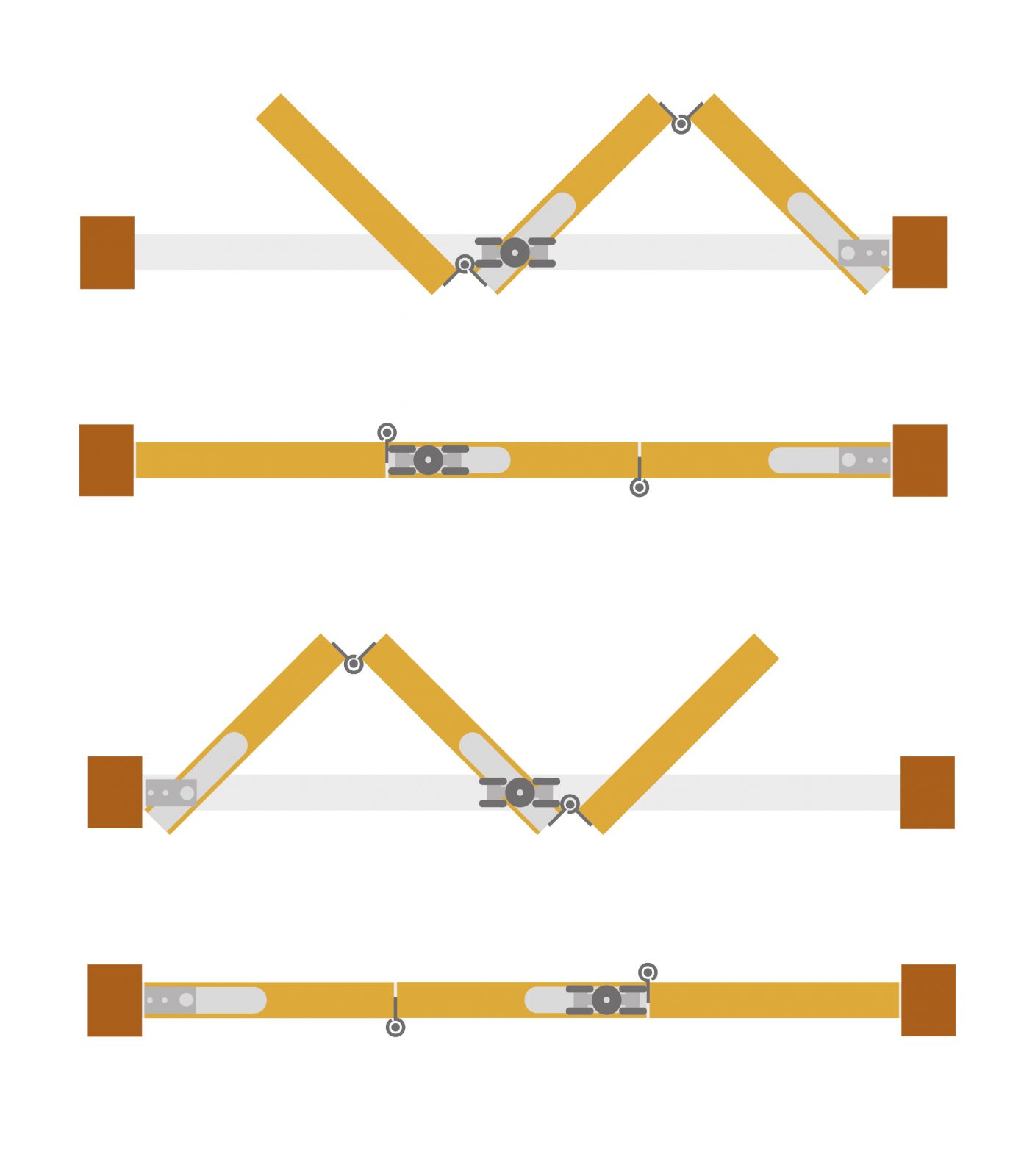

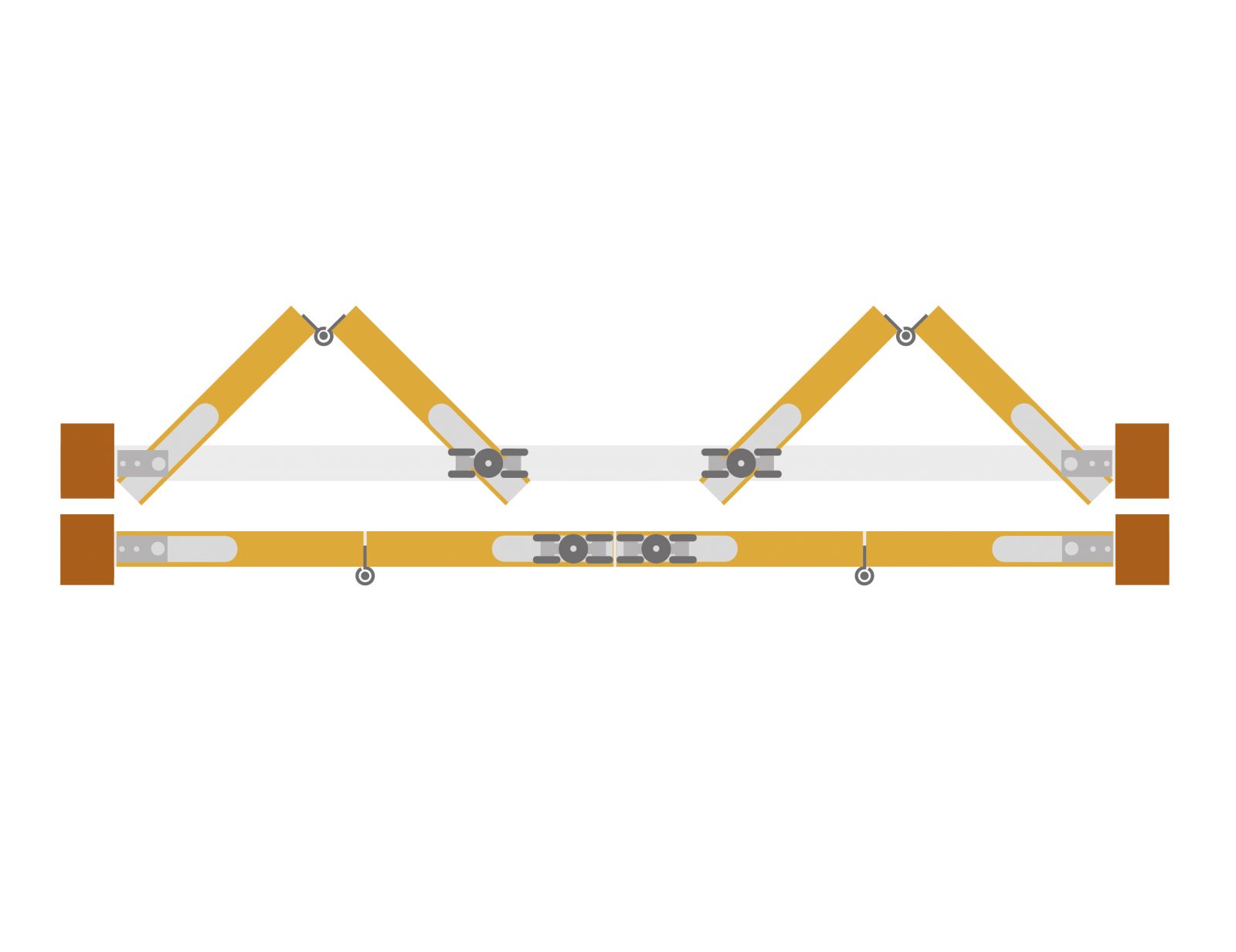

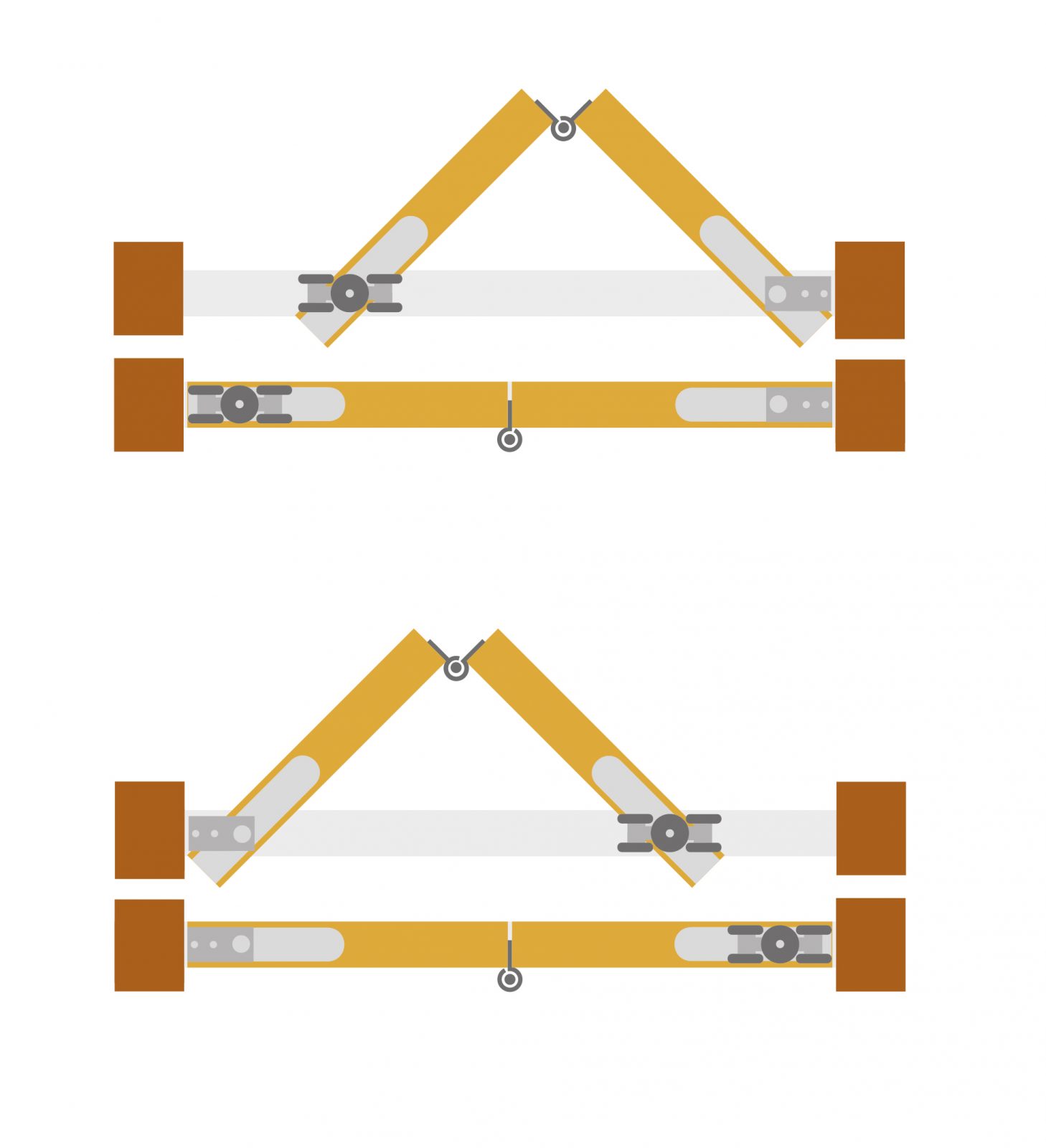

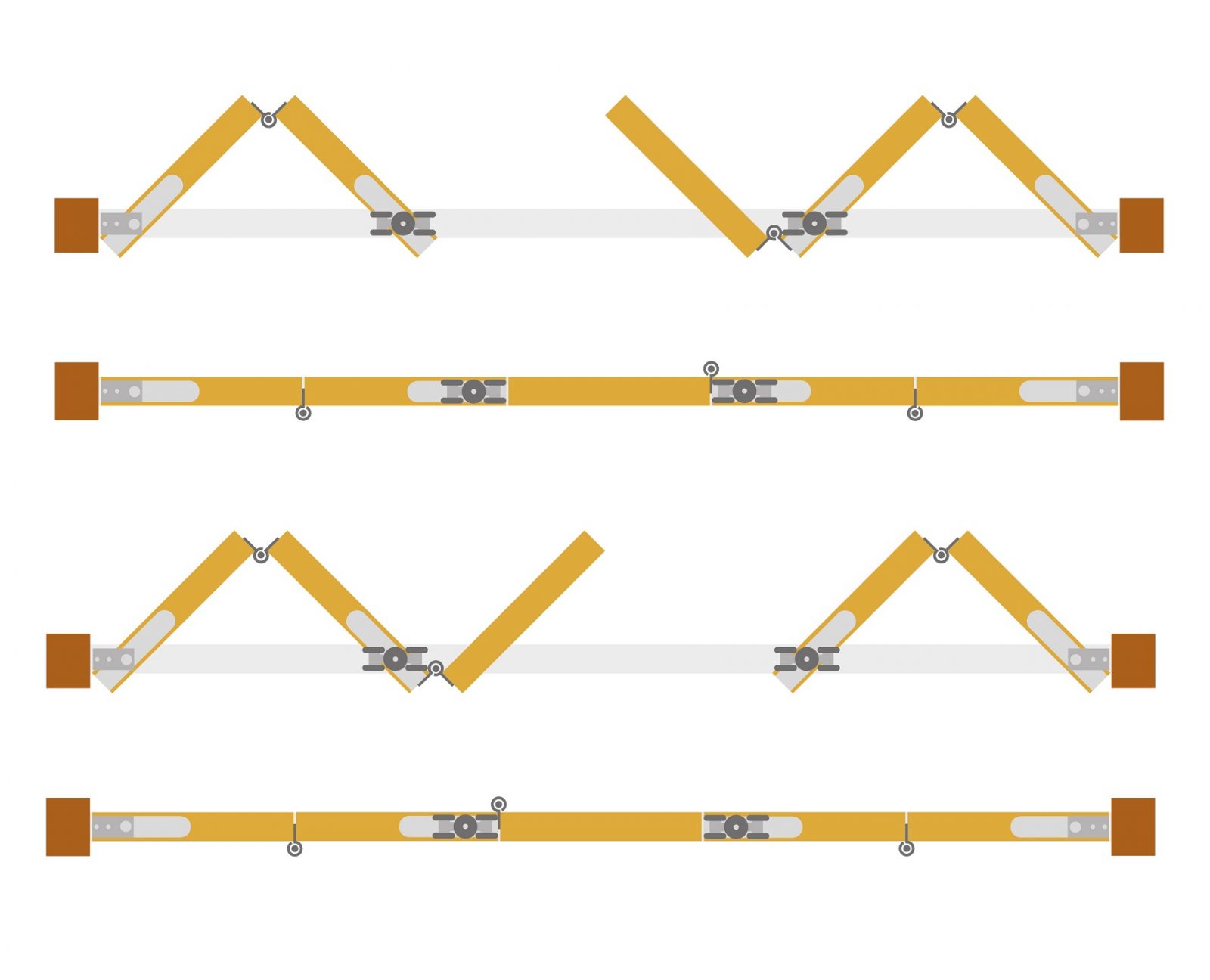

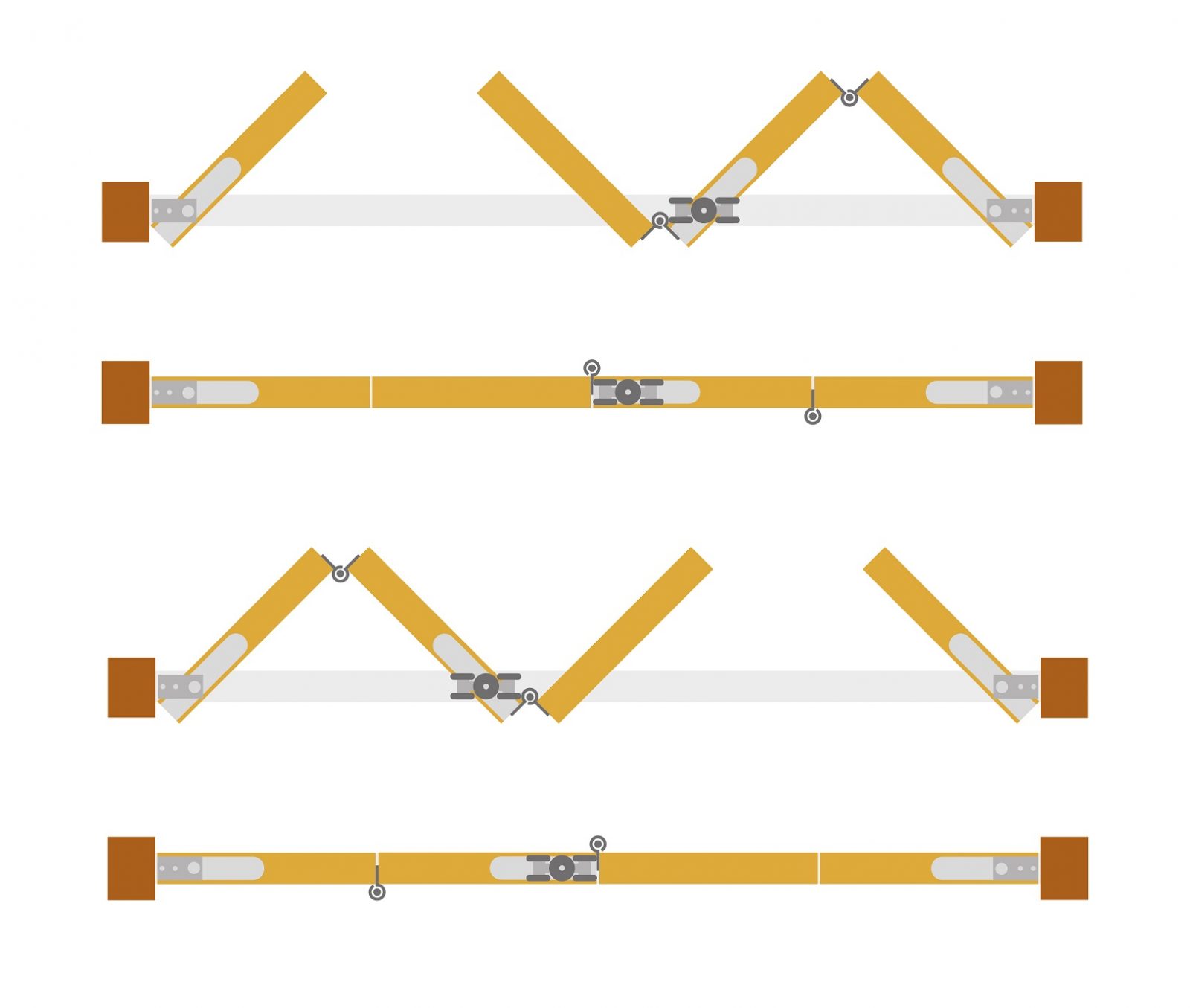

• Any number of doors can be fitted to the system

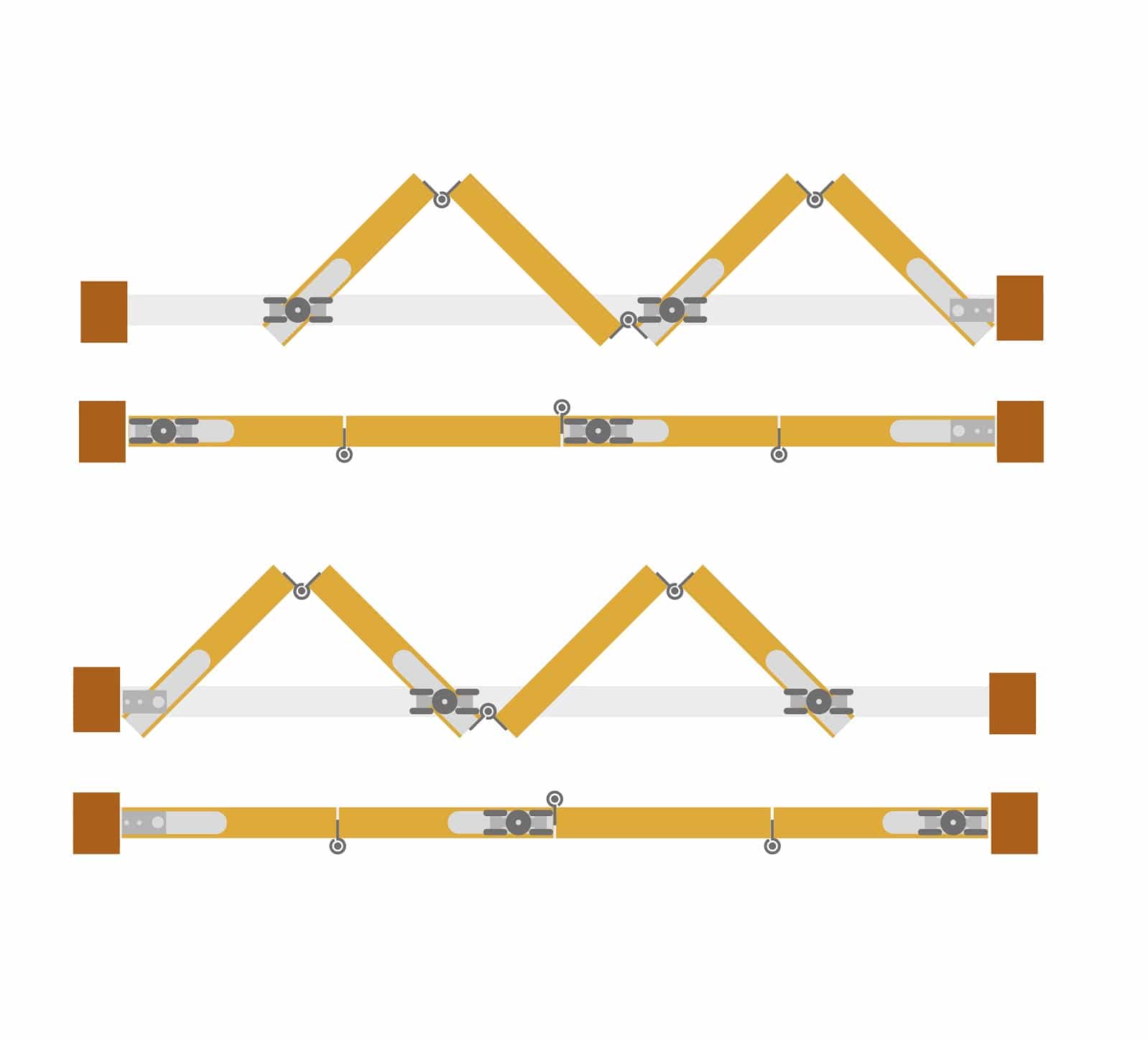

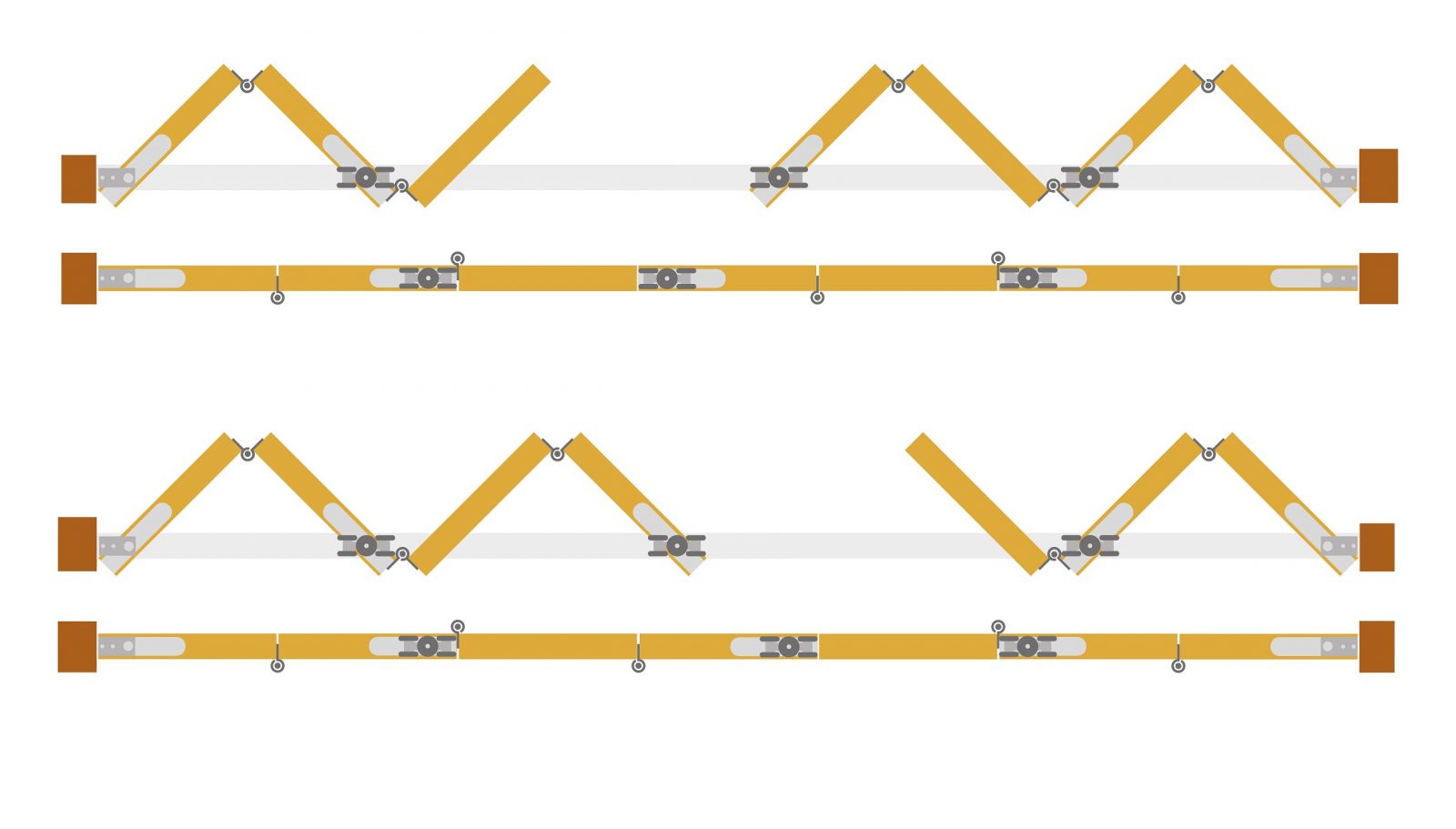

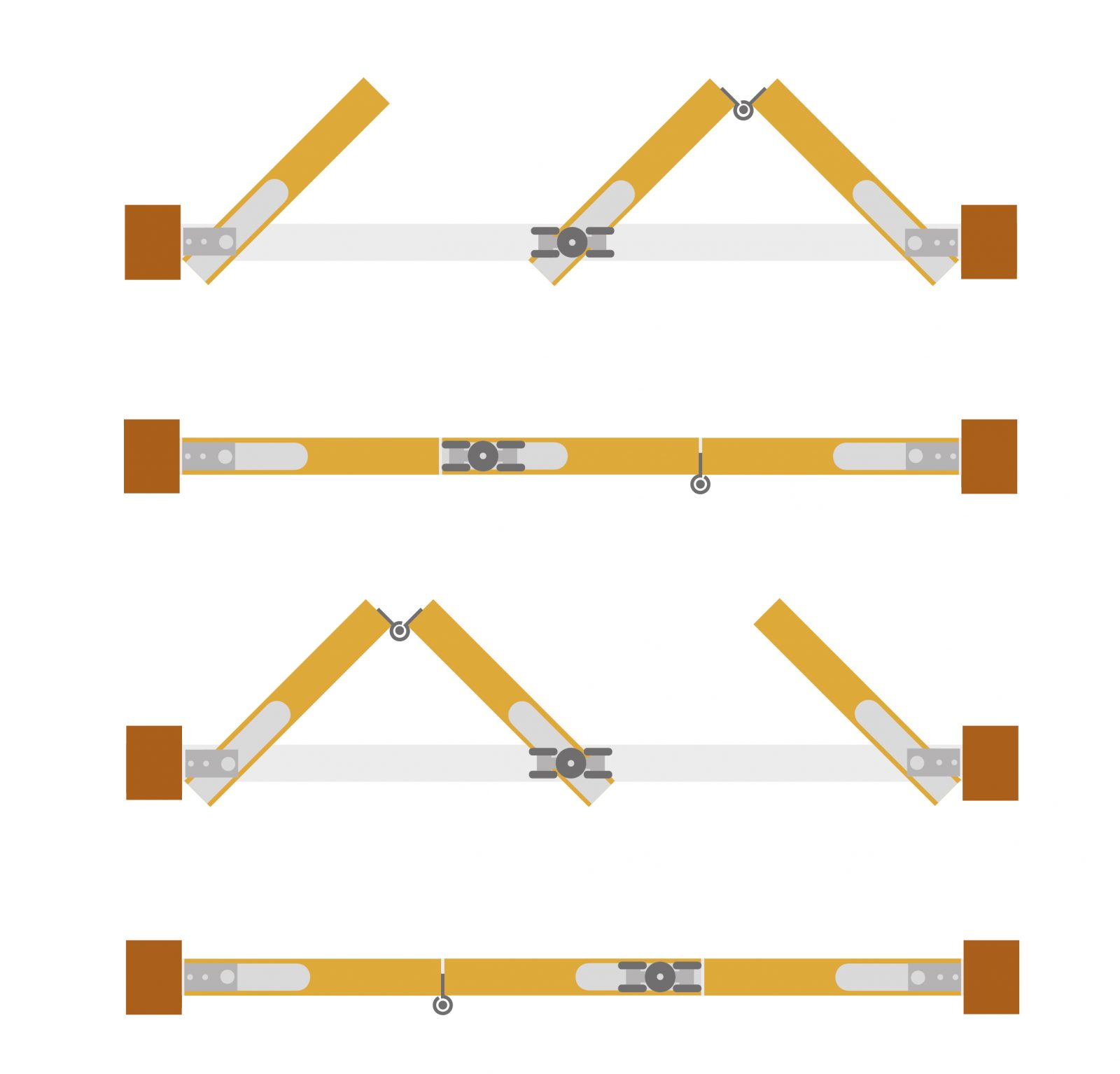

• Optional bottom track for configurations up to 4 doors folding each way
• Compact top track (38mm x 39mm)
• Ergonomic hinge handle design for optimal functionality

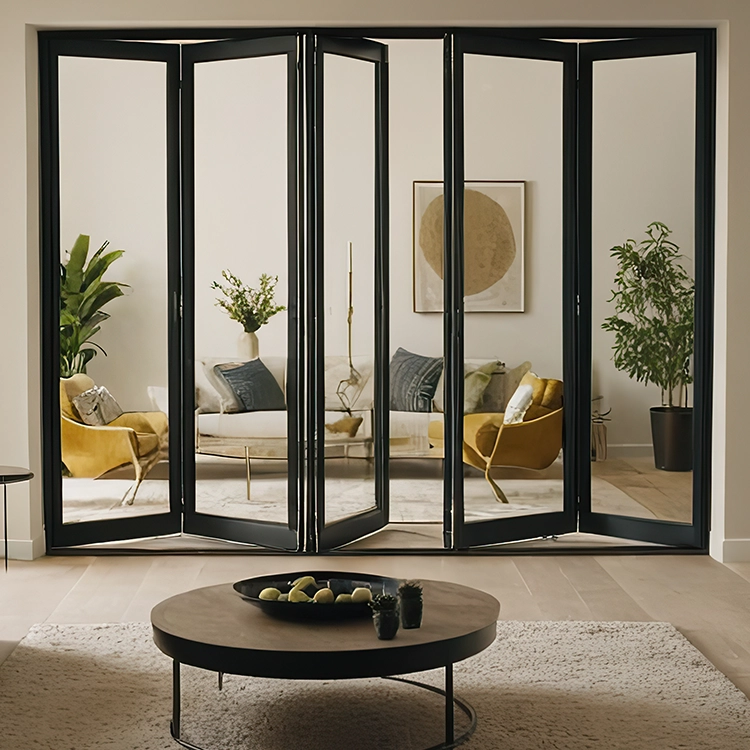

• Ideal for room dividers in homes, offices and hotels

Specification:

• Max door weight: 60kg
• Max door weight without bottom track: 40kg
• Max door height: 3000mm
• Max door width: 1000mm
• Min door thickness: 30mm

Kit Contents:

• Aluminium top track (Available in 2m, 3m, 4m and 6m lengths)
• Optional aluminium bottom channel (Available 2m, 3m, 4m and 6m lengths)
• 1 x L-bracket top and bottom pivot for fixed starter panel
• 1 x L-bracket four wheeled polymer top roller every 2nd door
• 1 x Optional L-bracket bottom guide roller every 2nd door
• 3 x flush hinge and screws per join between doors
• 1 x hinge handle per join every 2nd door
