The production of the high security Reliance D30 locking system is in response to ever increasing customer need. The Reliance D30 is a product of flexibility, which amongst many benefits allows for the production of doors which are in excess of 3 metres tall! It also comes with two different latch lengths which eliminates door edge damage and allows you to use many
different traditional joinery methods.
This double door system has handles fitted to both the slave and the master giving a traditional appearance and uses a twin deadbolt master lock giving you brilliant adjustability and ongoing peace of mind.
The master lock engages directly slave lock which has 8mm square tri-laminate shoobolts that locate into in the head and sill.
Kit Includes:
- Masterlock – Twin Deadbolt Multipoint Lock with 45mm Backset and 20mm Square End Faceplate
- Slavelock – Right Hand with 45mm Backset, 20mm Square End Faceplate and 22mm Latchplate
- Adjustable Deadbolt Keep with Under Adjustment
- Masterlock Reversing Mechanism
- Shootbolts
- Extension Bar
Specifications:

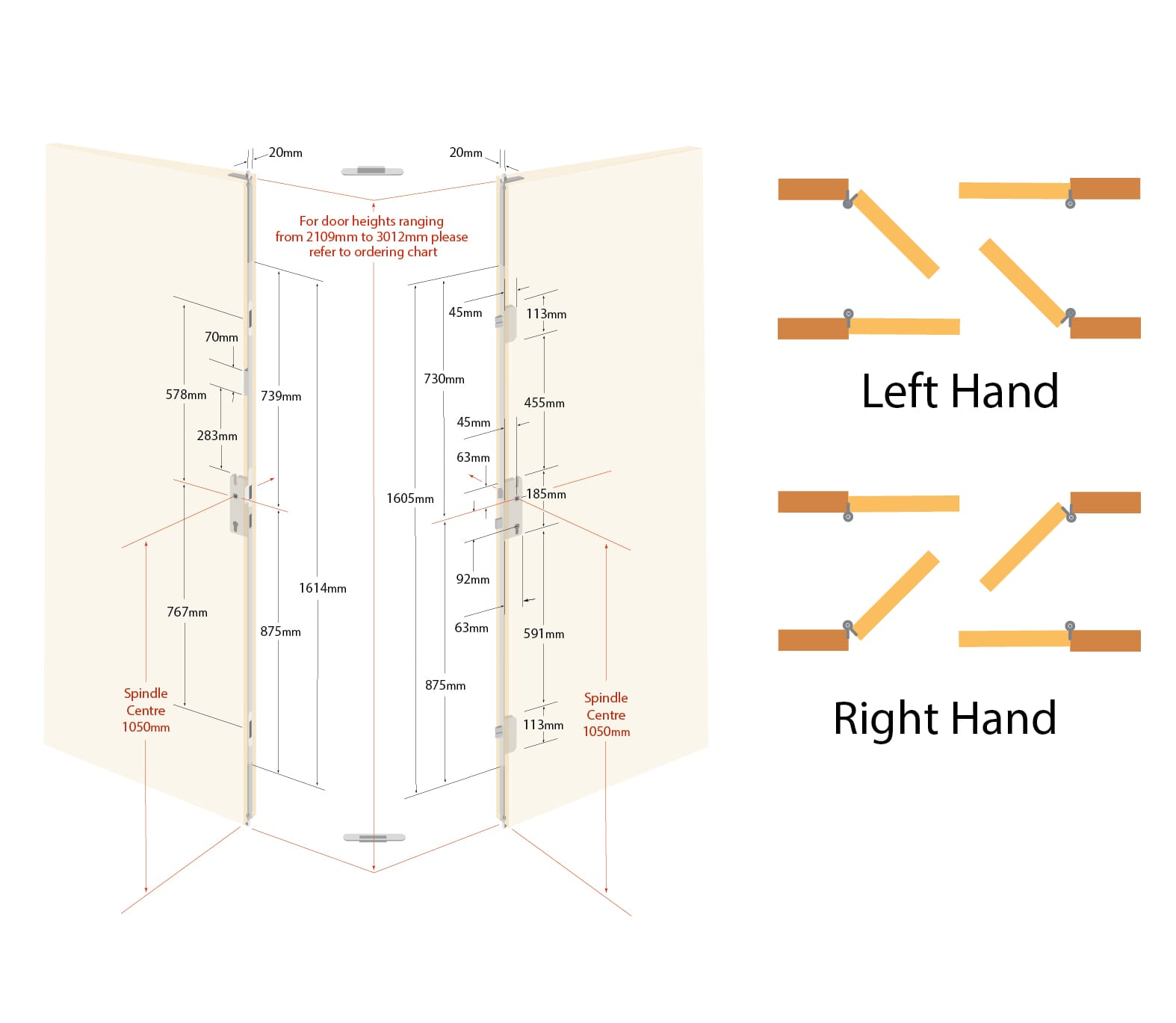

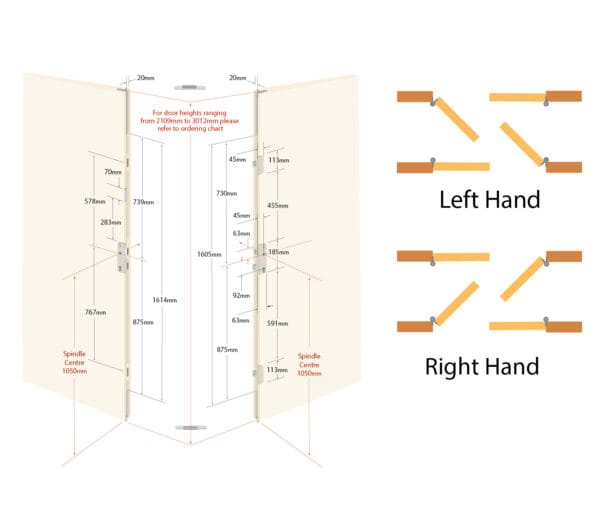

- Suitable for door heights between 2829mm – 3022mm
- Shootbolts on slave door and master door – ideal for taller doors
- Handles fitted to both slave and master doors
- High anti-corrosion properties, Silver chrome 6 plating which achieves Grade 4 BS EN 1670
- Suitable for both inward and outward double doors
- Fully adjustable integrated keeps +/- 2mm
- ‘Secured by Design’ approved.
- Tested to PAS24 and EN14351-1:2006 standard.
- Manufactured by Winkhaus
