Reliance D41 Single Handle Hookbolt Multipoint Locks
Description
Delivery & Returns
The Reliance D41 double door lock range provides you with an exceptionally high locking option without the need for a second set of levers and cylinders.
Combined with either our Reliance D10 twin deadbolt lock or our Reliance D20 hookbolt lock range on the master door, the locking hooks penetrate the slave lock to secure the two leafs together. No additional hook keeps are required.
The D41 range is ideally suited to the taller French doors and for main entrance doors with an operating side panel.
Kit Includes:
- Right Hand Hookbolt Multipoint Lock with 45mm Backset and 20mm Square End Faceplate
- Right Hand Multipoint Lock Slave Bolt
- Slave Door Shoot Bolts
- Adjustable Shootbolt Keep 13mm Receiver Hole

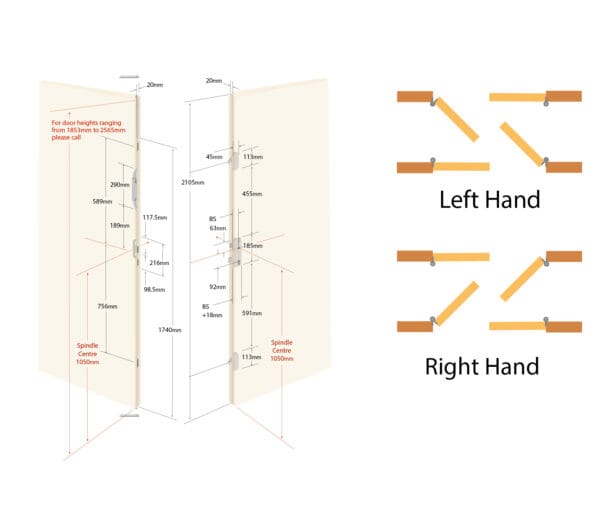

Specifications:
- To suit sash heights 2282mm – 2424mm
- An attractive alternate to standard twin handle double door locks
- Secure 20mm long laminated steel top and bottom shootbolts
- Ideal for double doors with irregular sash widths
- Integral bottom shootbolt giving 1050mm
- Easily operated by the convenient operating lever
- Removes the need to use a second handle and cylinder
- ‘Secured by Design’ approved.
- Tested to PAS24 and EN14351-1:2006 standard.
- Manufactured by Winkhaus
