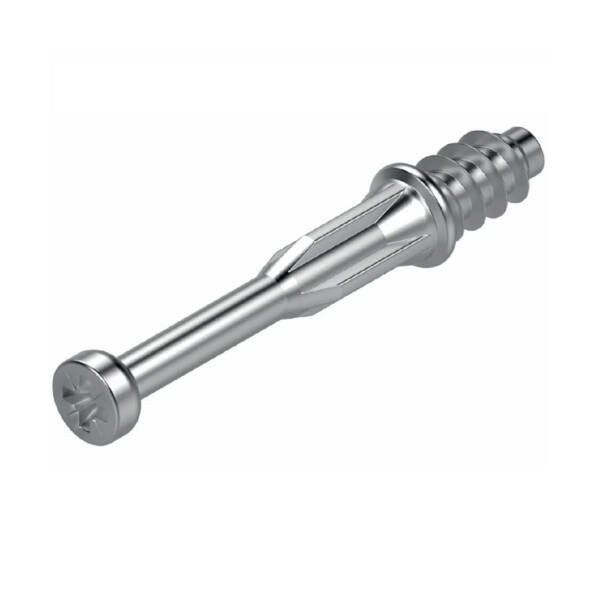

ConX Dowel, 2,000/pk
Description
Delivery & Returns
Product Description:
The ConX Dowel is a reliable solution for furniture assembly, designed with precision for secure and durable connections. Featuring sharp wood threads for easy screwing and an Ø8mm locking ring, it ensures a strong hold in soft chipboard. With lower dimensional tolerances and a PoziDriv 2 head for simplified screwing, the ConX Dowel is built for efficiency. Manufactured from durable iron with a galvanised finish for rust resistance, it delivers long-lasting performance. Supplied in 2,000-piece packs, it is ideal for high-volume applications.
Specifications:
24mm Dowel (CFK604):
- Drilling Dimension: 24mm
- Length (L1): 31.5mm
- Material: Iron
- Finish: Galvanised (FZ)
- Pack Size: 2,000 pieces

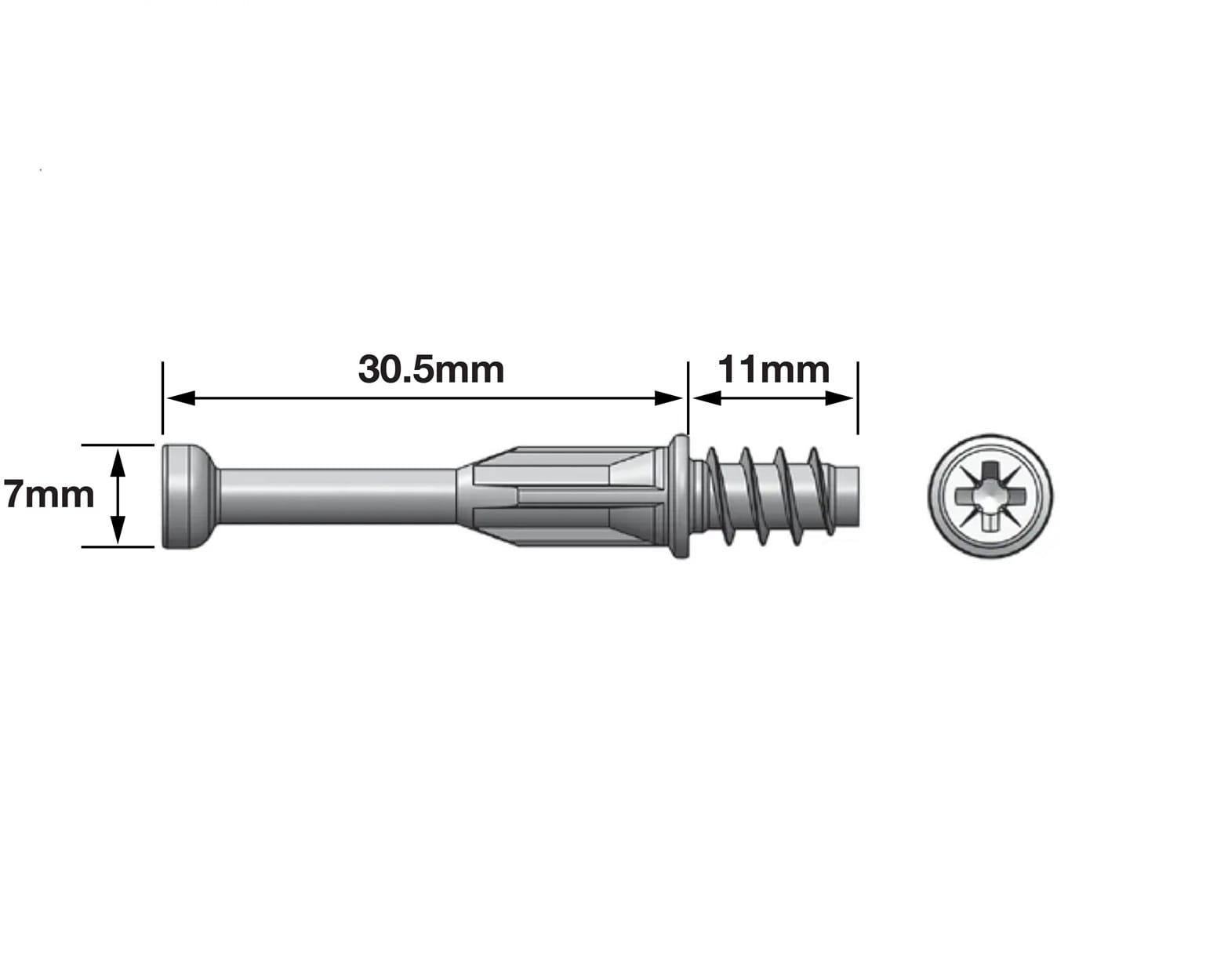

34mm Dowel (CFK605):

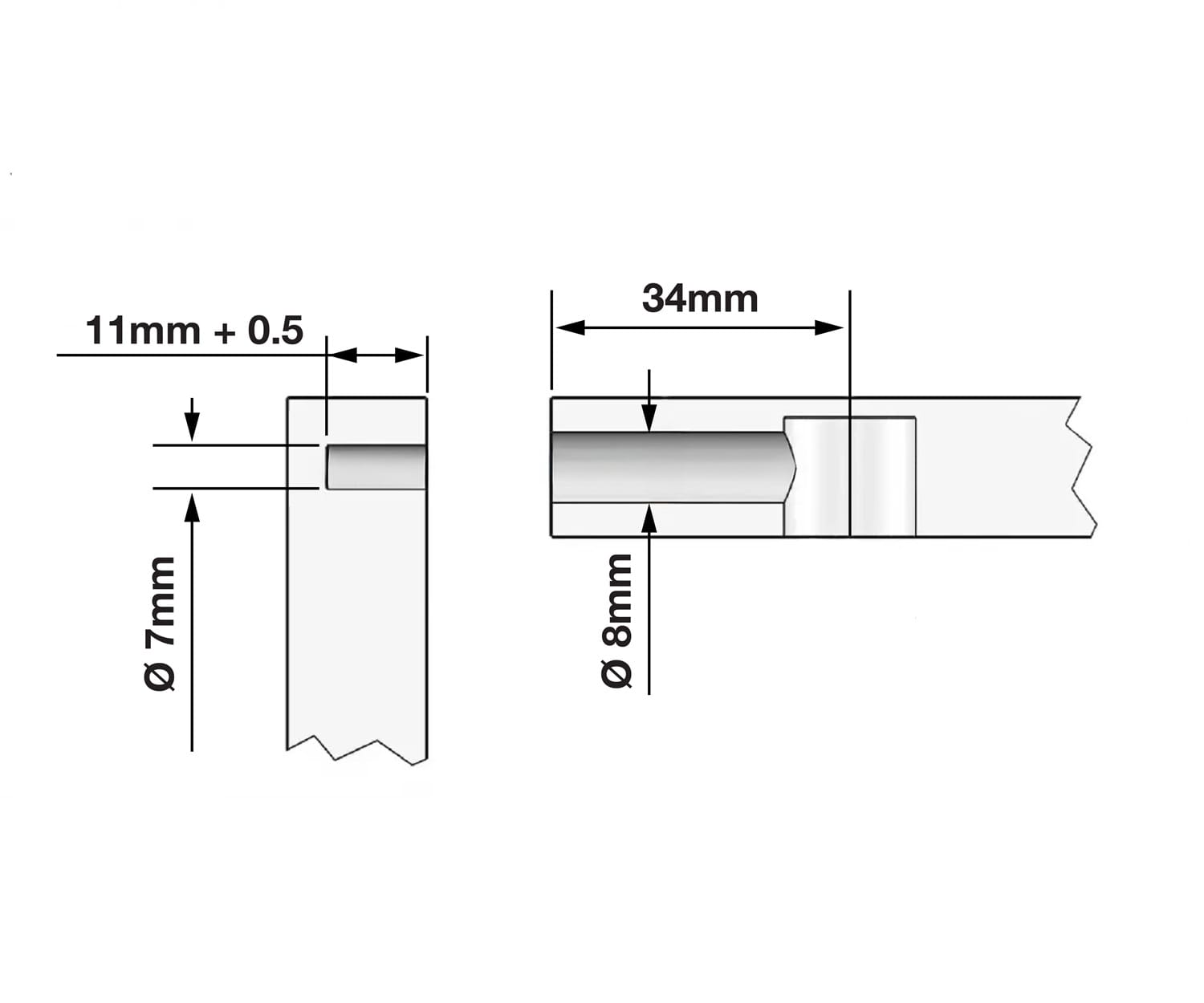

- Drilling Dimension: 34mm
- Length (L1): 41.5mm
- Material: Iron
- Finish: Galvanised (FZ)
- Pack Size: 2,000 pieces
Technical Details:
- Lower dimensional tolerances for precise fitting.
- PoziDriv 2 ISO 4757 head simplifies screwing.
- Sharp wood threads ensure easy and secure assembly.
- Ø8mm locking ring provides strong hold in soft chipboard.
Sustainability:
- Saves raw materials.
- Reduces electricity consumption.
- Minimizes cooling oil usage.
